aug 032009

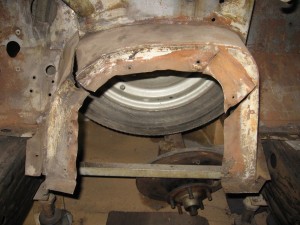

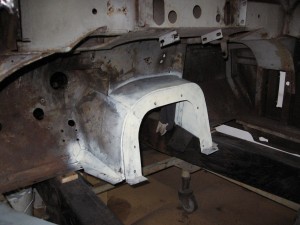

Before I could start with fitting the gearbox cover the bulkhead and driveshaft tunnel needs to be fixed.

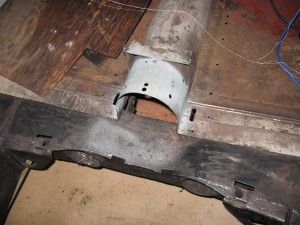

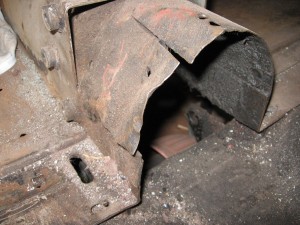

For some reason it looked like they have removed the gearbox from the car compartment, and needed some extra room. They used a chisel to open up the bulkhead and drive shaft tunnel for about 4 inch.

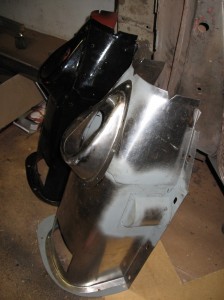

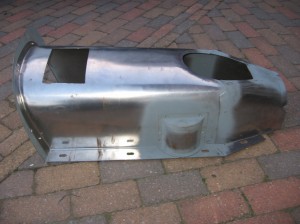

I had to reproduce or buy a gearbox cover because this part was not available anymore. Buying one on the internet is very expensive (used or new) so I decided to make one myself from the sheet metal left from the other jobs.

In the direct neighborhood of my home there is a jaguar garage situated and I could borough one from them. It was a cover from a XK150 but they should be interchangeable and could be used as an example.


 Posted by at 21:45
