apr 272020


The XK140 Fixed Head Coupe has two batteries one on each side. Each battery is 6V and, because they are used in series, the total voltage will be 12V.  (See also Battery Box Left Side)

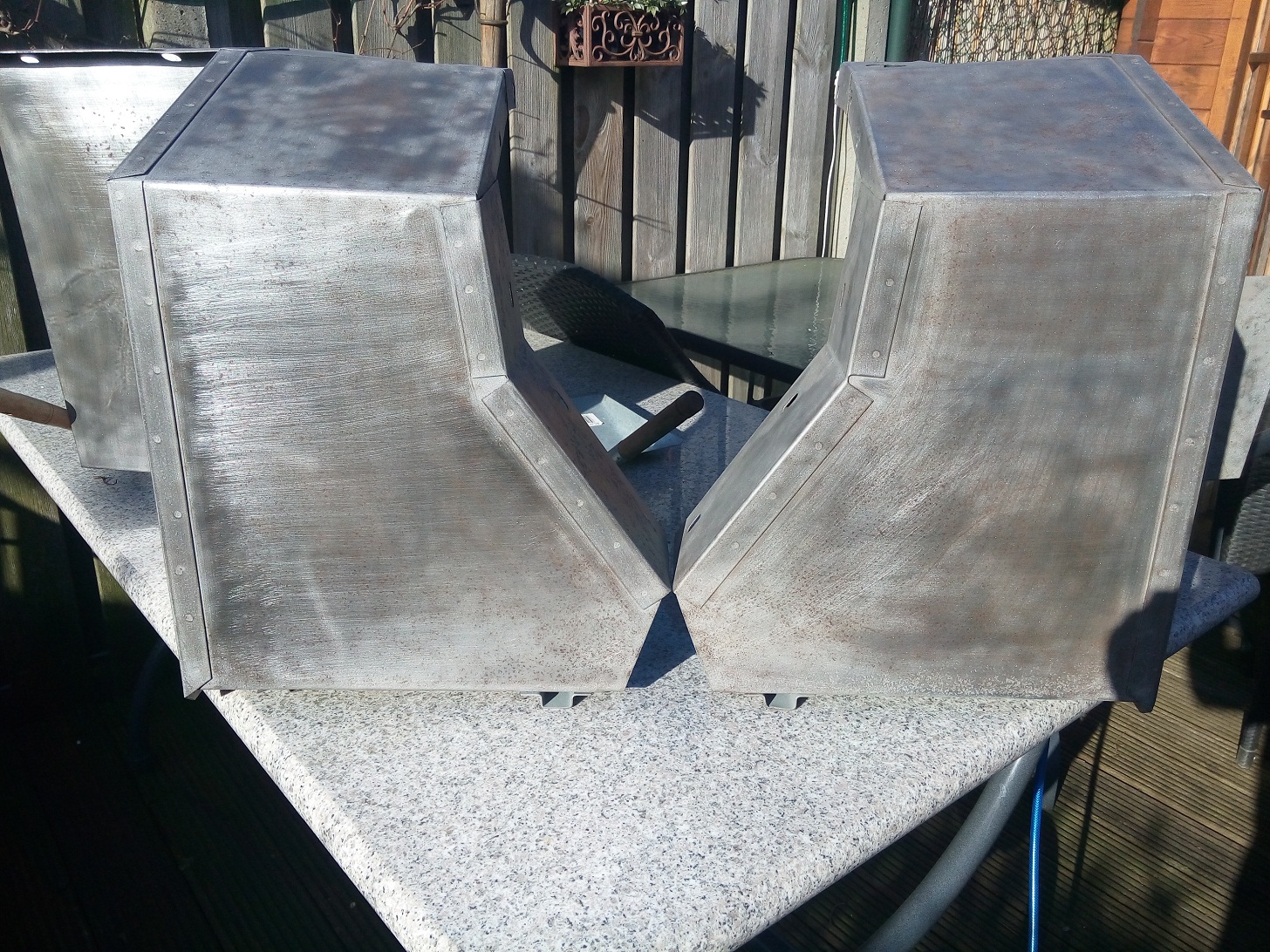

Due to spilled acid in the past the bottom and some brackets where rotten away completely. So these parts has been replaced with some new fresh sheet metal. Everything is spot welded to each other and, of course, painted black as original.

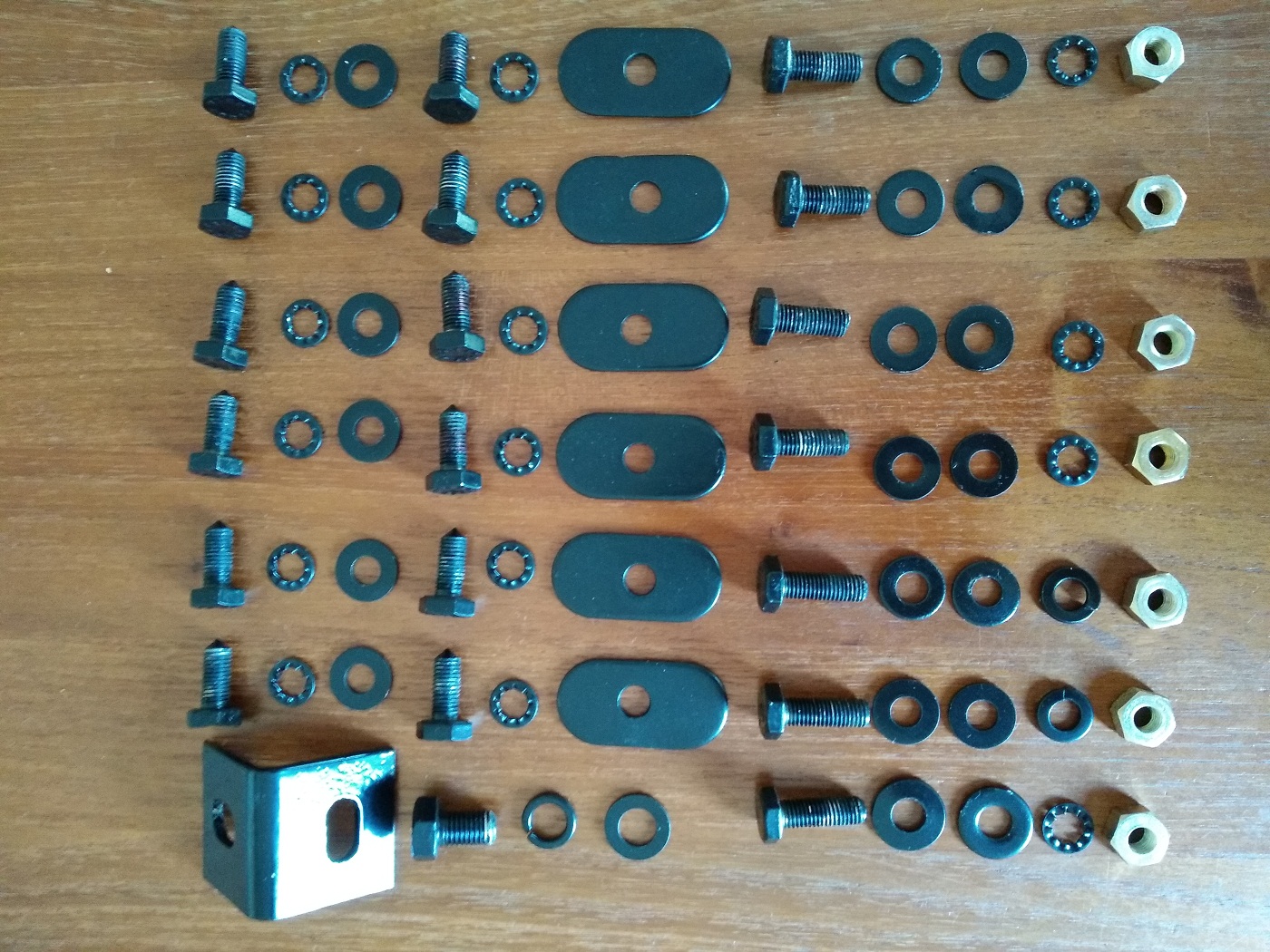

Parts needed to mount the battery box

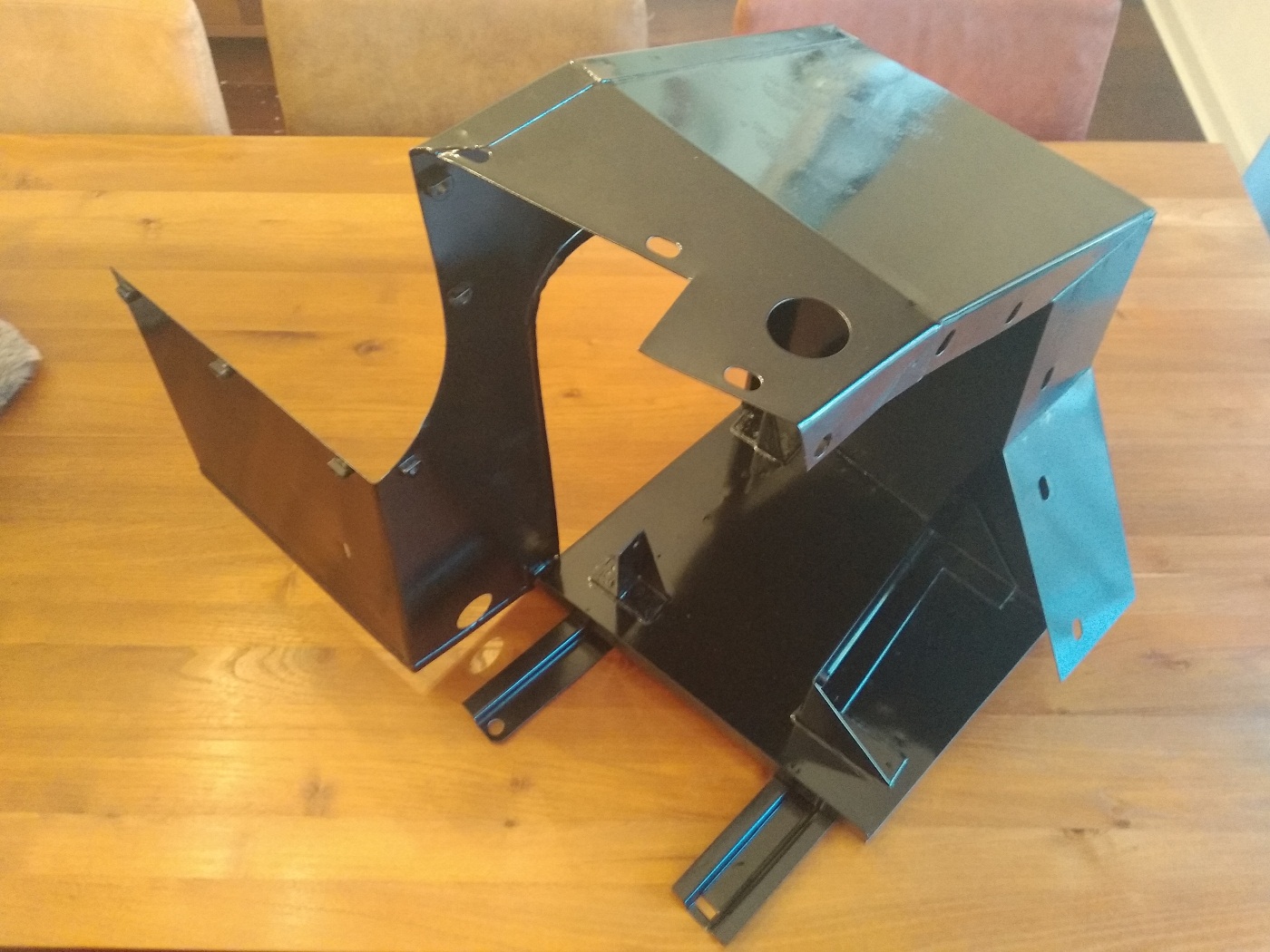

The battery box for the right side

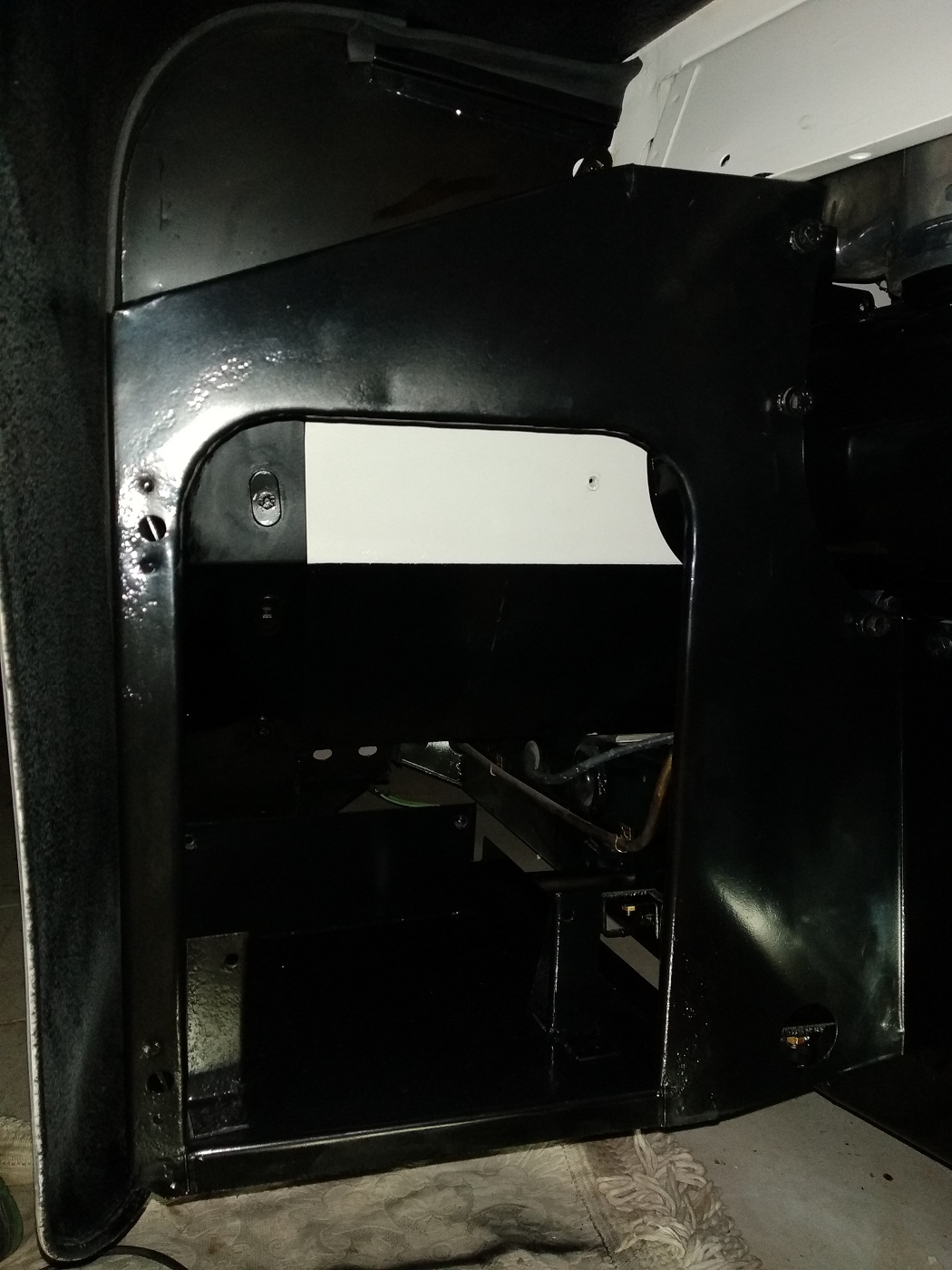

The right side battery box mounted on the right side of the car

We now only need to mount the battery and battery door to close the opening , and to finished off this part. (See Battery Box Doors )
